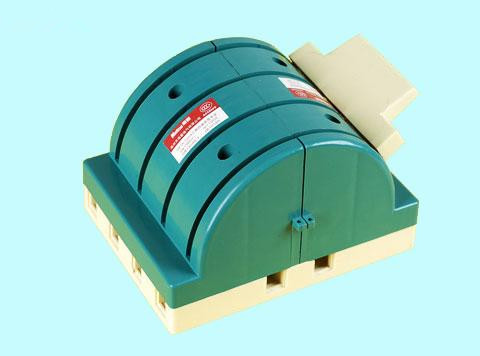

KNIFE SWITCH

KNIFE SWITCH

KNIFE SWITCH
KNIFE SWITCHKNIFE SWITCHKNIFE SWITCHKNIFE SWITCHKNIFE SWITCH
CategoriesSWITCH&SOCKET
AlbumView larger image
BrandDUTEK
ModelTYPE 2
Colourdecided by customer
Max. Current63A
Max. Voltage220V
Pole2P/3P/4P
Rated current32A 63A 100A 160A 225A
Rated voltage220/380V
FOB portShanghai,ningbo
Terms of PaymentL/C, D/A, D/P, Western Union
Update Time2019-04-20
Detail Information

Product Description
Material DMC/PA66/ABS/Copper
 Current 63A
 Voltage 220V
 Packaging 1 pc/paper box or 2 pcs/foam box,36pcs/carton
 Warranty 2 yearS
 Certification CE CCC
 Application Residential/General-Purpose
 Payment T/T
 Delivery 10-30 days after receive T/T payment
 Minimum Order 200 pcs




Applicable scope:

          Suitable for AC 50Hz, rated voltage to 380V, DC voltage to 380V, DC to 440V distribution equipment; rated current to 1500A, as a frequent manual switch on and off, the DC circuit or isolating switch with. Among them:

          1.The central handle type single throw and double throw knife switch is mainly used in the transformer substation, and does not cut off the circuit with the current, and is used as the isolating switch.

         2.Side operated handle type knife switch is mainly used in power box.

         3.The central positive lever operating mechanism knife switch is mainly used in the front operation and the rear maintenance switch cabinet, and the operating mechanism is installed in front of the switch.

        4.Lateral frontal operation mechanical switch is mainly used in the switch cabinet, in front of the front two operation maintenance, the operating mechanism can be installed on both sides of the cabinet.

        5.The knife switch equipped with arc extinguishing chamber can cut off the current load, and the other series knife switches are only used as disconnecting switches. Don't mess with it.



Use effect:

        1.Isolated power supply to ensure the safety of the circuit and equipment maintenance; or as a load that is not connected and disconnected frequently below rated current.

        2.Breaking load, such as low voltage circuit which is not connected and broken frequently, or directly started small capacity motor.

        3.When the knife switch is in the disconnection position, it can be clearly observed that the safety of circuit maintenance personnel can be ensured.



Packing information

SpecificationQty / CtnGross W.Net W.LengthWidthHeight
pcskgskgscmcmcm
2P32601615563424.5
2P633013123932.531
2P10024151451.536.522.5
2P2258131246.52230
3P3224121143.528.525.5
3P6316111049.534.221.3
3P10012121141.236.624.5
3P225410934.52530.5
4P63121211473423
4P10081211393423.5
4P1608161545.537.526.5
4P22541211422530


       We are adhering to the principle of customer first, to your promise: each product before leaving the factory has been strictly tested to ensure quality.
